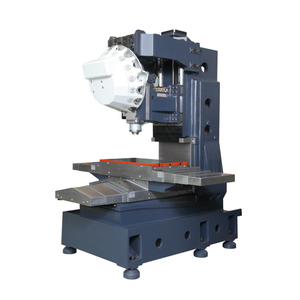

Vertical drilling- tapping machine
Model: PTC500/600
Product Detail








Features:

1."A" type column has bigger span in base to ensure rigidity and stability. High rapid feed rate X/Y/Z:48m/min, accelerated speed:1G.

2.The highest speed of tapping reach to S4000RPM,the maximum type is M16(aluminum)

3.Chip removal in back with powerful chip removal device to make sure cleaning chip without stopping machine.

4.Arm type automatic tool change,(T-T)tool changing time is 2sec.



HIGH SPEED,HIGH EFFECTIVENESS,NO COUNTERWEIGHT

BEST CHOICE FOR MASS PRODUCTION!


High rigid frame:

All the main parts adopt Meehanite cast iron to provide high wear resistance,accuracy and low vibration in a long time.


Spindle speed

12000RPM        (OP 15000/200000RPM)


Rapid feed

X=48M/min        Y=48M/min        z=48M/min









Specifications:
PTC500
PTC600
X/Y/Z-axis travel
500*400*300
600*400*300
Table size
620*420
700*420
Max. table load
350
400
Throat(spindle-to-column surface)
420
420
Spindle nose-to-table dist.
200-500
200-500
X/Y/Z-axis motor rating
1.5/1.5/3.0
1.5/1.5/3.0
X/Y/Z rapid feed
48000
48000
Controller
MISUBISHI:M70B optional Configuration M70A/FANUC:0i-MD/0i-Mate-MD/SIEMENS828D
Spindle mount
BT30
BT30
Spindle speed
12000
Spindle motor rating
7.5(5.5KW)
Positioning accuracy
±0.003/300
Repeat positioning accuracy
±0.002/300
Air compressor mount
6-7bar
Overall dimensions
1670*2250*2300
1860*2500*2700
weight
3600
3700



Tool changing time

● T-T:2.0 second


Optional tool magazine

BT30-21T servo tool magazine(tool changing time for the Furthest tool:2.3sec.)


Standard Configuration

Arm type 16T tool magazine

BT30-120000 straight spindle

Powerful back-flushing device

Spindle oil cooler device


Optional Configuration

4-axis rotation table

Column heighten 100-200mm

Pneumatic clamping tool

Straight spindle 15000/18000/20000RPM

Optional 21T tool magazine capacity
