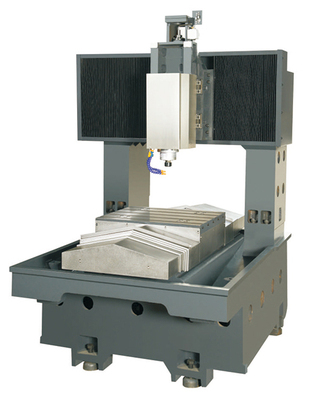

Gantry-type engraving- milling machine
Model: PGM550/650/870
Product Detail


Gantry-type engraving- milling machine








Features:

1."A" type column has bigger span in base to ensure rigidity and stability. High rapid feed rate X/Y/Z:48m/min, accelerated speed:1G.

2.The highest speed of tapping reach to S4000RPM,the maximum type is M16(aluminum)

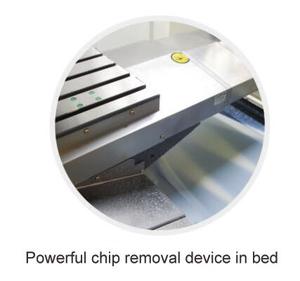

3.Chip removal in back with powerful chip removal device to make sure cleaning chip without stopping machine.

4.Arm type automatic tool change,(T-T)tool changing time is 2sec.









Features:

1.cast-iron frame with high gantry design for maximum rigidity and high accuracy.

2.High-performance ball screws are quipped with precision bearings to ensure sustained,smooth,vibration-free operation.

3.Adopt Japan-NSK imported high precision bearings and coupling to ensure optimum machining results,even at high axial and radial loads.

4.High speed,high torsion and high accuracy spindle satisfy effective machining requirements and reach the accuracy.

5.Taiwan-Syntec/LNC control system are used.easy to learn and perform well.

6.Adopt Japan-YASKAWA driving system,Japan-SANYO servo driving system to ensure machining smoothly and high accuracy.









Specifications:

PGM550PGM650PGM870
Worktable Size(mm)550*480600*500800*600
X/Y/Z-axis travel(mm)500*450*230600*500*250800*700*350
Spindle speed(rmp)24000rpm/min  18000/21000/3000 rpm/min
Spindle taper bore(KW)ER20/ER25
Spindle motor rating(KW)3.25.5
X/Y/Z-axis motor rating(mm/min)0.85/0.85/0.85
1.3/1.3/1.3
X/Y/Z-axis rapid feed(mm/min)12000
X/Y/Z-axis cutting feed1-8000
Controller
TAIWAN Syntec10MA  optional LNC600i/Fagor 8055i
(repeat) positioning accuracy(mm)
±0.005/300mm/±0.003/300mm
Worktable weight(kg)250300400
Electric power(kva)15
Air compressor mount(kg/cm2)6
Weight(kg)300035004000
Dimensions(L*W*H)1800*1700*24001900*1800*26002100*2000*2800



Standard Configuration:

● Circulating-type force cooler

Explosion-proof work lamp

Automatic chip conveyor

3-axis ball screw oil cooler

Ethernet

Oily-water seperating equipment

Electrical cabinet heat exchanger


Optional Configuration:

Disc type tool magazine

Spindle speed15000/18000/20000

4/5 axis rotating work table

Oilway hilt interface

Water from spindle center
